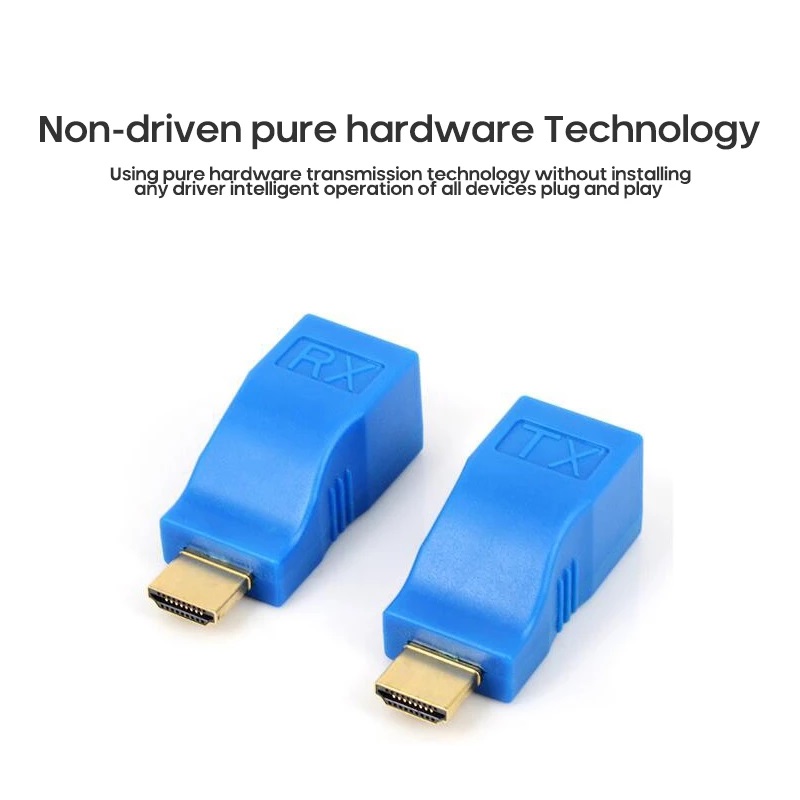

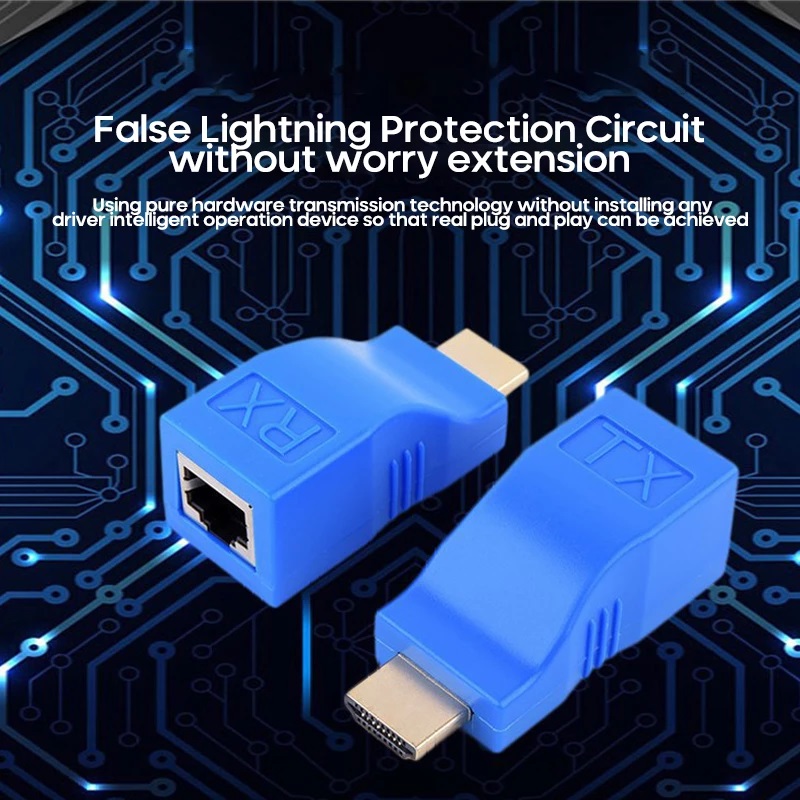

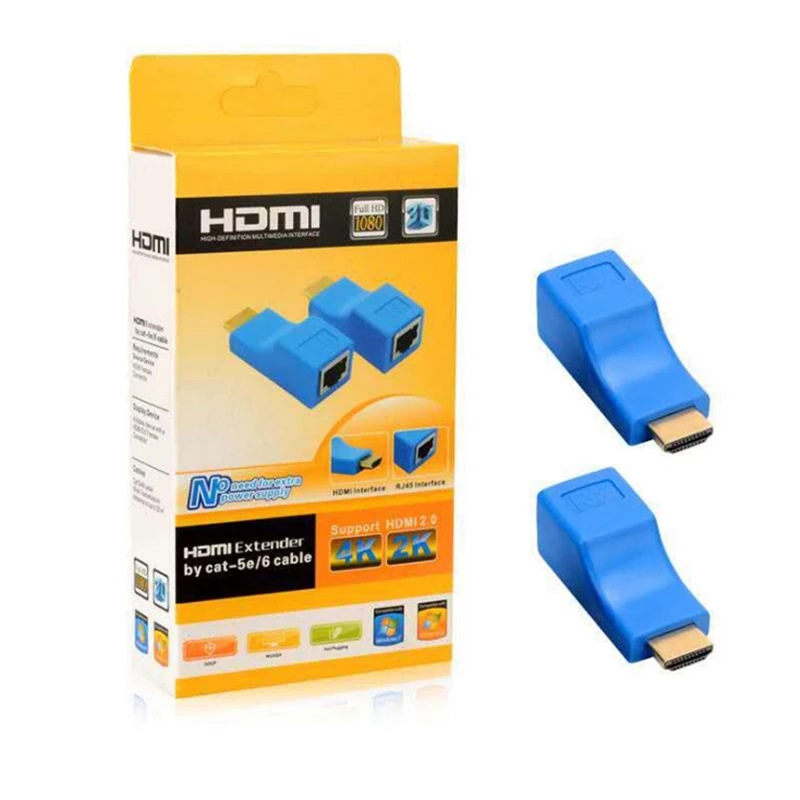

Nextek HDMI (M) to RJ45 (F) Adapter

Description

This kind of HDMI Extender by CAT-6/6E uses single piece CAT-6/6E cable to extend the HDTV display up to 30 meters for 1080p. It not only breaks the limitation of the HDMI cable transmission Lenght, but also CAT-6/6E has more flexibility and convenience in cable construction.

Features:

This HDMI extender has many features that enable it to perform in a superior manner. Among those features you will find.

1. One pair as a full functional module, no need of setting.
2. CAT-6/6E cable can substitute HDMI cable of achieve long distance transmission.
3. Follow the standard of IEEE-568B.
4. Transmission distance can be up to 30 meters for 1080p using CAT-6/6e cABLE.
5. Compact size.
6. Signalling rater up to 2.5Gbps in support of 1080p dispaly.
7. HDCP compliant.
8. No need for extra power supply.

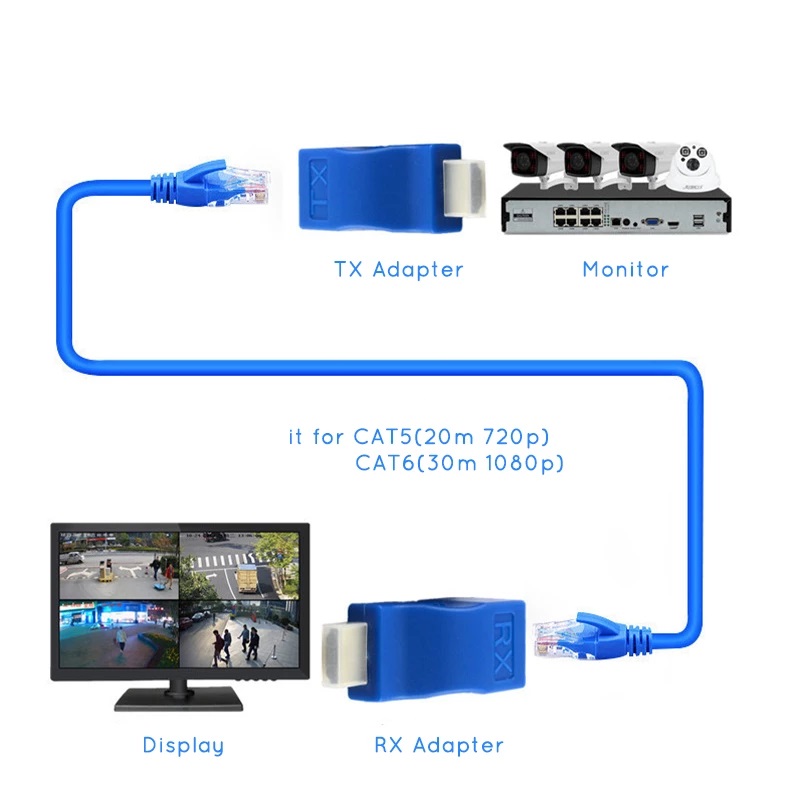

Connection & Operation:

1. Plug the fixed HDMI connector of the sender into the HDMI input source such as HD-DVD, PS3,STB etc
2. Connect single CAT-6/6e cable to both the output of the transmitter and input of the receiver.
3. Plug the fixed HDMI connector of the receiver into the HDMI display such as HD-LCD, HD-DLP etc

Note:

• Use CAT-6/6E Cable to Work
• Transmission distance up to 30Meter
