Portable Multifunctional DC UPS for Wi-Fi routers, fiber modems (ONTs), and CCTV cameras

Description

United Mini DC UPS (Uninterruptible Power Supply), which is primarily used as a backup battery solution to keep Wi-Fi routers, fiber modems (ONTs), and CCTV cameras running during power outages or load shedding.

• The Mini UPS Unit: A black rectangular power bank with textured panels forming a cross design. It features a power button indicator panel showing battery capacity levels (25%, 50%, 75%, 100%) and system indicators (Power and Status).
• AC Power Cable: The thick black cable with a standard 2-pin Europlug used to connect the UPS directly to your wall outlet to charge it.
• DC Splitter Cable (Y-Cable): The cable at the bottom with one input connector splitting into two output barrel jacks. This allows you to power two separate 9V or 12V devices simultaneously (such as a Wi-Fi router and a fiber box) from a single port.
• Single DC Extension Cable: The short cable at the top with a barrel jack on each end, used to connect a single device to one of the output ports.

Key Applications & Functionality:

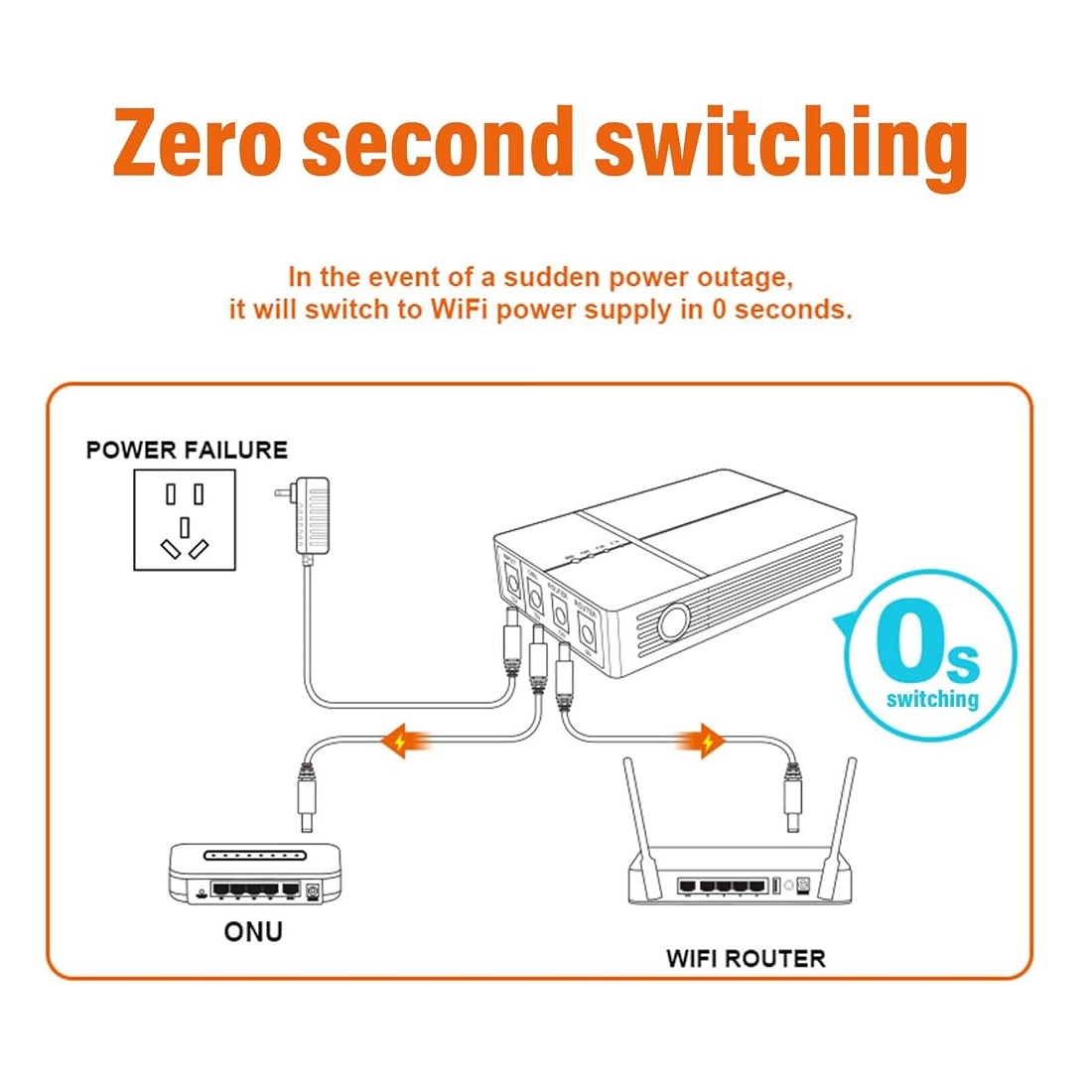

• Instantaneous Transfer: The device automatically switches over to battery power the millisecond grid power drops, preventing your internet from disconnecting.
• Multi-Voltage Support: These units typically feature selectable or dedicated output ports supplying 5V (USB), 9V DC, 12V DC, and sometimes 15V/24V PoE (Power over Ethernet) to match the power specifications of standard networking gear

Key Features:

• 5+ Hour Run Time
• Suitable for wired and wireless networks
• Suitable for CCTV
• Dual DC Output for 2 devices
• USB Port for Third Device
• LED Power Indicator and Power Over Ethernet
• Certification: CE, ROHS, FCC, PSE
• High-Quality Lithium-Ion Batteries
• With 1 device connected lasts approximately 10 hours, with 2 devices connected lasts approximately 5 hours
• High Capacity Lithium-Ion Batteries
• Dual-voltage DC outputs
• Voltage Selection
• Intelligent Protective Design
• Smart Chip Control

Specifications:

• Extensive backup power – 4+ hours of run time
• PO port 15V/24V selectable
• DC output 5V/9V/12V selectable
• Input Voltage: 85-265V
• 5+ Hours of Run-Time
• 10 400 mAh
• Ripple and peak restrained protection
• Over-current protection
• Over-voltage protection
• Short-circuit protection
• Over-charge protection
• Over-discharge protection

What’ in Box:

• 1 x Mini UPS, 1 x AC 2 Pin Power Cable, 1 x DC Power Cable
